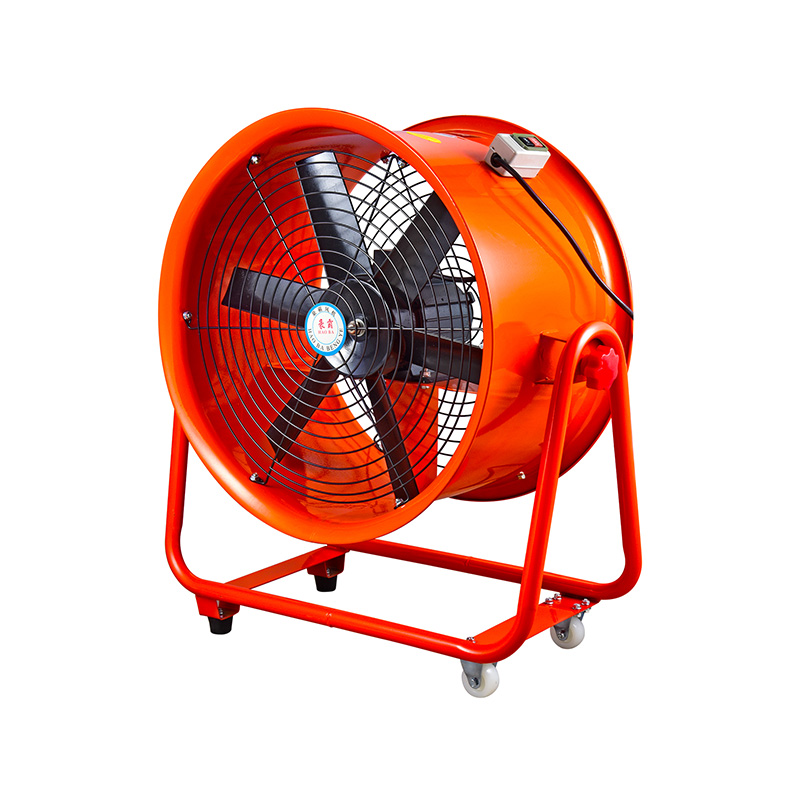

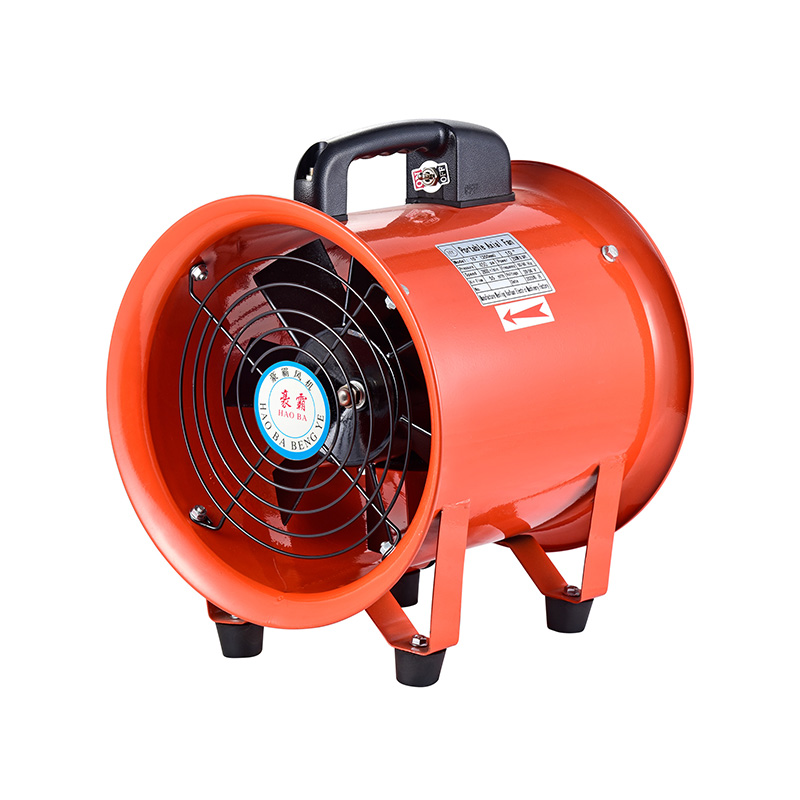

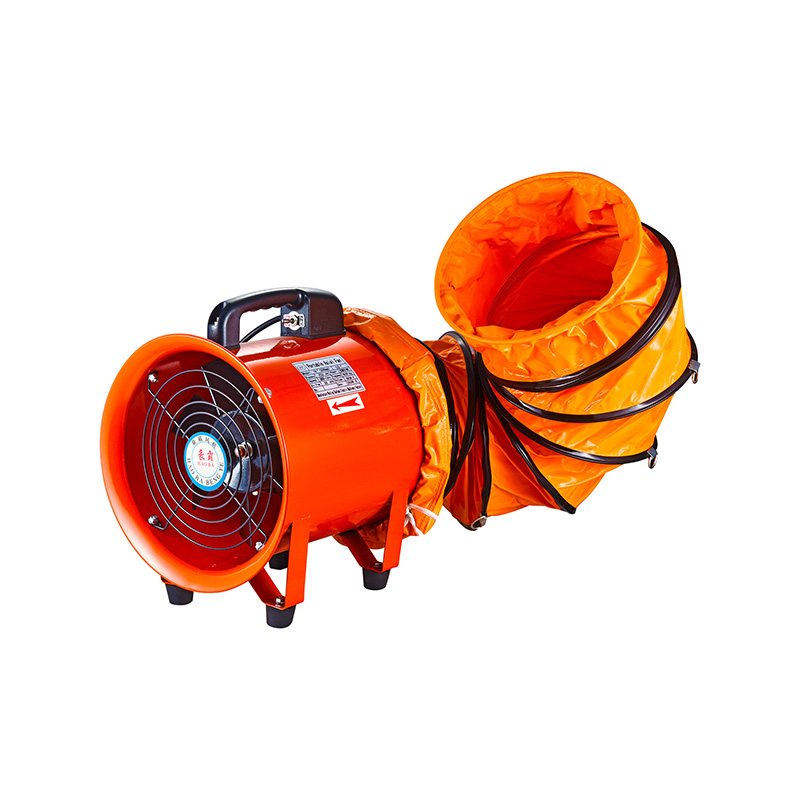

Portable High Speed Moving Axial Flow Fan

Home / Product / Axial Flow Fan / Portable High Speed Moving Axial Flow Fan

Portable High Speed Moving Axial Flow Fan

Portable high-speed fan, mobile axial flow fan has the advantages of less power consumption, large air volume, high wind pressure, low noise, and a reasonable structure, easy to use, the surface by advanced spray processing bright bright, durable.

It is widely used in warehouses, basements and parking lots for ventilation.

PREV：SF Stainless Steel Corrosion Resistant Noise Reducing Axial Flow FanNEXT：High Temperature Oil And Moisture Proof Axial Flow Fan
  • Technical Parameters
  • Installation Diagram
  • Installation Dimension
  • Contact Us
  • MODEL SPEED(r/min) POWER(Kw) AIR VOLUME(m³/h) TOTALHEAD(V)
    2.5-4 1450 0.15 1000 35
    2.5-2 2800 0.25 2100 215
    3-4 1450 0.18 3000 59
    3-2 2800 0.37 4000 230
    3.5-4 1450 0.25 4000 100
    3.5-2 2800 0.75 6000 260
    4-4 1450 0.55 5870 149
    4-2 2800 1.1 11000 370
    5-4 1450 0.75 6800 200
    6-4 1450 2.2 17000 320

    MODEL SPECIFICATION(mm) VOLTAGE(V) FREQUENCY(Hz) SPEED(r/min) POWER(KW) FLOW(m³/h) TOTAL PRESSURE(Pa) NOISE dB(A)
    CTF-20 200(8") 110 50/60 2800/3300 180/230 25/30 245/295 61
    CTF-20 200(8") 220-240 50/60 2800/3300 180/230 25/30 245/295 61
    CTF-25 250(10") 110 50/60 2800/3300 300/350 45/55 295/350 66
    CTF-25 250(10") 220-240 50/60 2800/3300 300/350 45/55 295/350 66
    CTF-30 300(12") 110 50/60 2800/3300 500/550 65/77 385/450 69
    CTF-30 300(12") 220-240 50/60 2800/3300 500/550 65/77 385/450 69
