WT35-11/FWT35-11 Strong Wind Axial Flow Roof Ventilator

Home / Product / Roof Ventilator / WT35-11/FWT35-11 Strong Wind Axial Flow Roof Ventilator

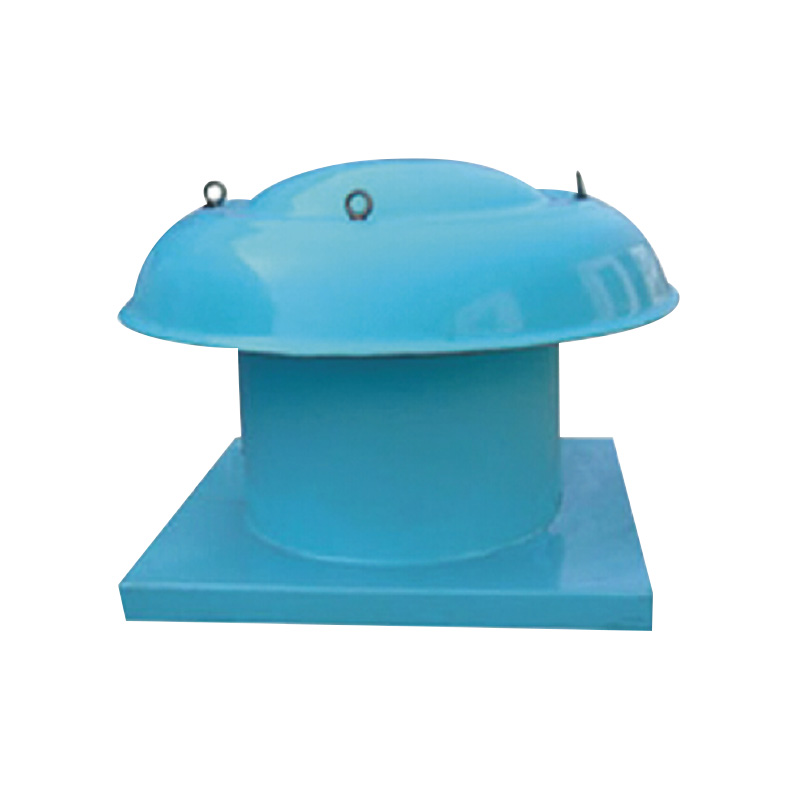

WT35-11/FWT35-11 Strong Wind Axial Flow Roof Ventilator

This series of WT35-11, FWT35-11 type axial flow roof fan air volume is large, the pressure is lower than the centrifugal fan, but can also be designed according to the needs of users into a bidirectional rotation, reversible.

The fan has the characteristics of low noise, light weight, stable operation, high efficiency and good anti-corrosion performance.

It is suitable for indoor ventilation of petroleum, chemical, textile, metallurgy and other machinery workshops and warehouse buildings.

PREV：No next articleNEXT：No previous article
  • Technical Parameters
  • Installation Diagram
  • Installation Dimension
  • Contact Us
  • No.  IMPELLER DIAMETER (mm) BLADE ANGLE(deg) ROTATIONAL SPEED(r/min) MOTOR(Kw-p) FLOW(m³/h) TOTAL PRESSURE(Pa)
    2.8 280 30° 1450 0.09-4 1464 48
    3.15 315 30° 1450 0.12-4 2072 59
    3.55 355 30° 1450 0.12-4 2977 74
    4 400 30° 1450 0.25-4 4263 95
    4.5 450 30° 1450 0.37-4 6070 121
    5 500 30° 1450 0.55-4 8327 149
    5 500 30° 960 0.37-6 5565 64
    5.6 560 30° 1450 1.1-4 11682 186
    5.6 560 30° 960 0.37-6 7724 81
    6.3 630 30° 1450 1.5-4 16639 236
    6.3 630 30° 960 0.75-6 11016 104
    7.1 710 25° 1450 3.0-4 23815 300
    7.1 710 25° 960 0.75-6 15766 131
    8 800 25° 1450 5.5-4 31325 354
    8 800 25° 960 1.5-6 20735 155
    9 900 25° 960 3.0-6 29529 196
    10 1000 25° 960 4.0-6 40508 242
    11.2 1120 25° 960 7.5-6 50909 304
