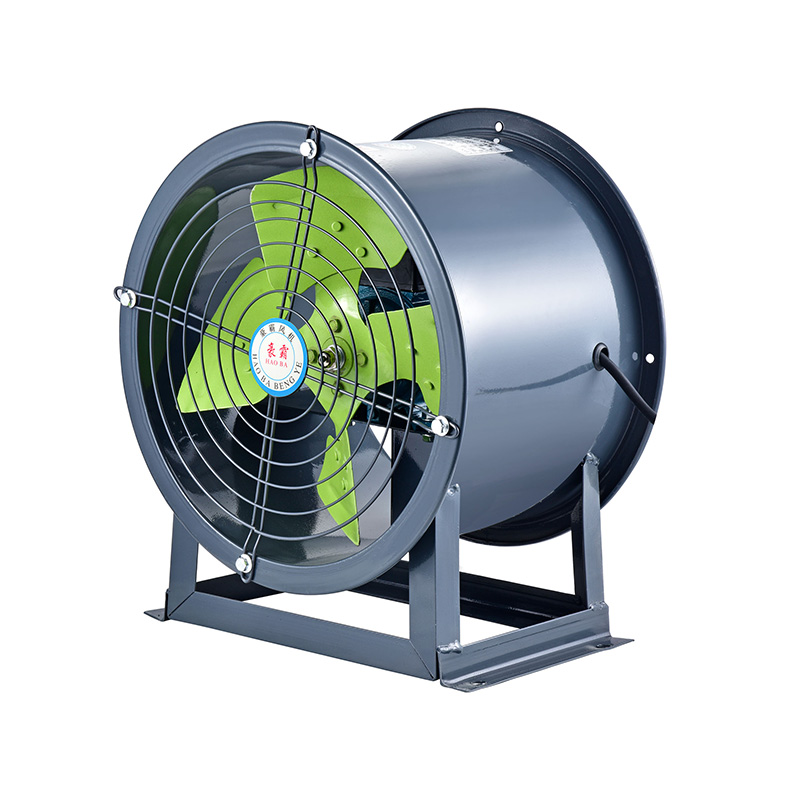

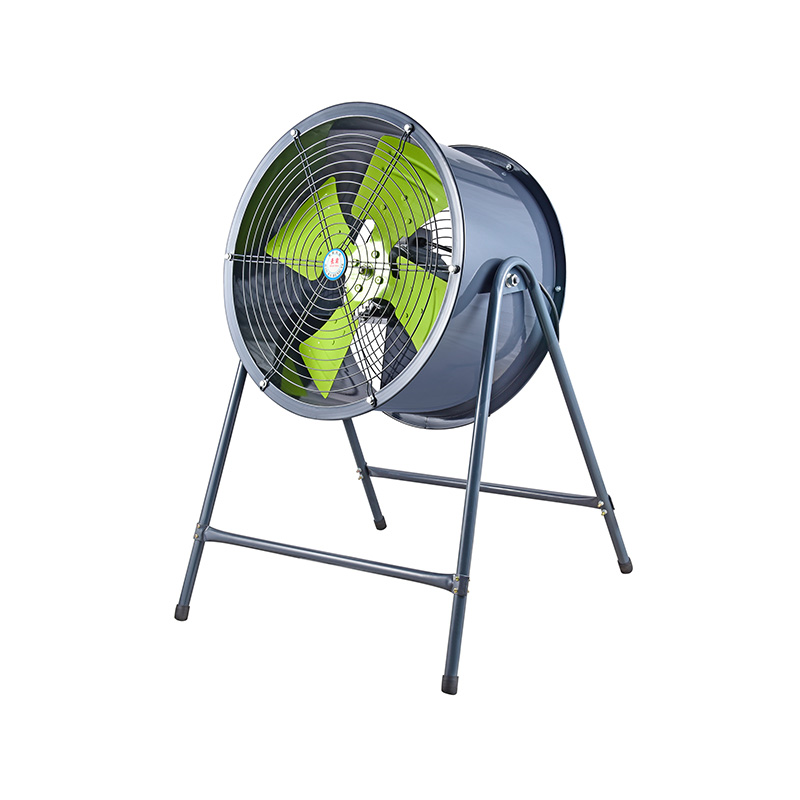

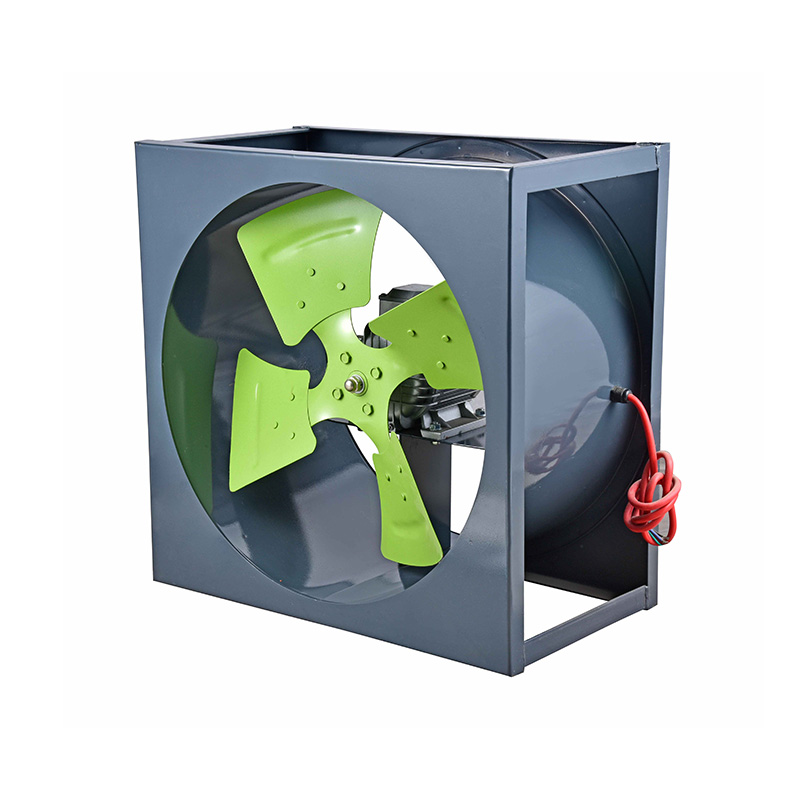

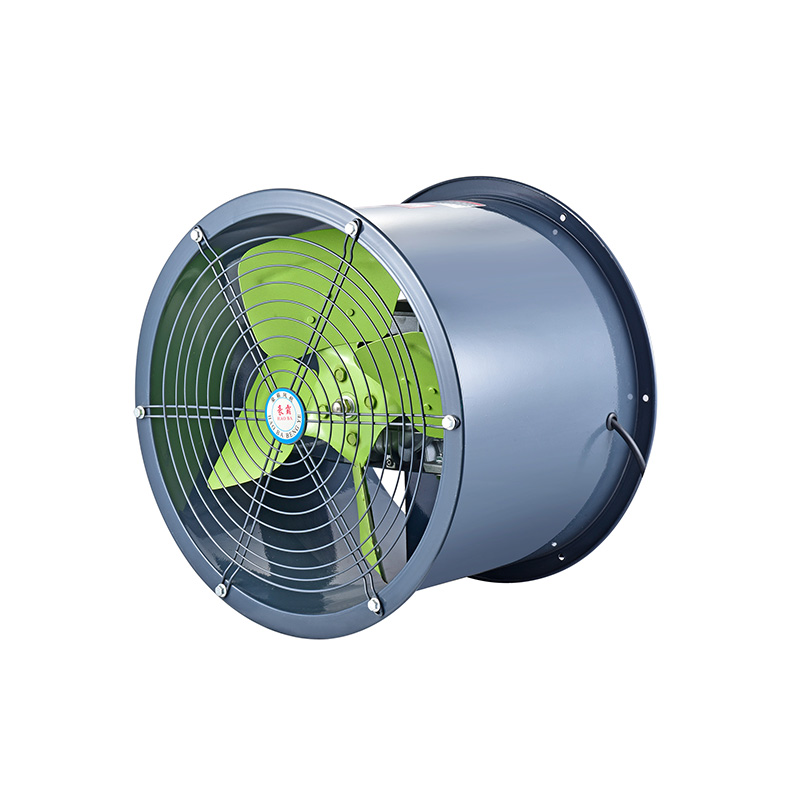

SF Low Noise Axial Flow Fan

The SF-type axial flow fans can be used in metallurgy, kilns, steel rolling, chemical industry, textile, warehouse, canteen, grain depot, farm, tunnel, residence, and other places for ventilation or heat dissipation. It can also be installed in series in a longer exhaust pipe to increase the air pressure in the pipe.

The characteristics of the fan are: simple structure, low noise, wide range of power selection.

Contact Us

Technical Parameters
Installation Diagram
Installation Dimension
Contact Us

MODEL	DIAMETER(mm)	SPEED(r/min)	POWER(Kw)	AIR VOLUME(m³/h)	VOLTAGE(V)	TOTAL PRESSURE(Pa)
SF-2-2	200	2800	0.12	1300	220	140
SF-2-4	200	1450	0.09	600	220	20
SF-2.5-4	250	1450	0.12	1000	220/380	35
SF-2.5-2	250	2800	0.25	2100	220/380	215
SF-3-4	300	1450	0.15	2000	220/380	59
SF-3-2	300	2800	0.37	3000	220/380	230
SF-3.5-4	350	1450	0.25/0.55	4000	220/380	100
SF-3.5-2	350	2800	0.55/1.1	6000	220/380	260
SF-4-4	400	1450	0.55	5870	220/380	149
SF-4-4	400	1450	0.75	6500	220/380	170
SF-4-2	400	2800	1.5	11000	220/380	380
SF-5-4	500	1450	0.75	10000	220/380	200
SF-5-4	500	1450	1.1	11800	220/380	230
SF-6-6	600	960	1.1	14500	380	180
SF-6-4	600	1450	2.2	18700	380	300
SF-7-4	700	1450	3	24500	380	350
SF-8-4	800	1450	4	37200	380	435
SF-9-6	900	960	4	36000	380	240
SF-10-6	1000	960	4	50000	380	260
12(5.5-6 three-phase)	1200	960	5.5	58000	380	280
4(0.75-4 three-phase)	400	1450	0.75	7500	220/380	180
5(1.5-4 three-phase)	500	1450	1.5	13000	220/380	230
