YG5-47 Small Air Cooled Boiler Centrifugal Fan

Home / Product / Centrifugal Fan / YG5-47 Small Air Cooled Boiler Centrifugal Fan

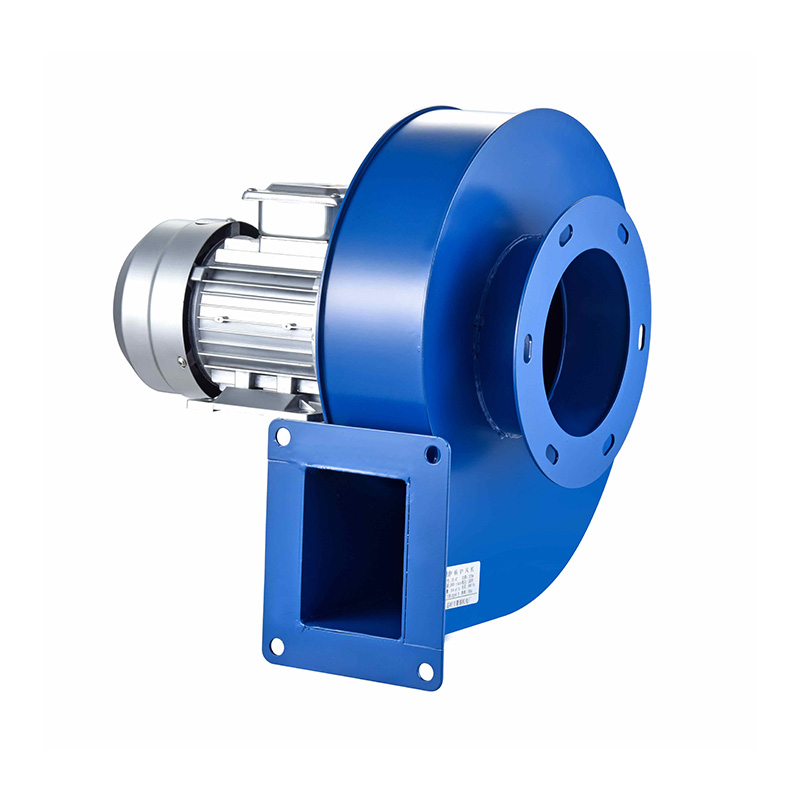

YG5-47 Small Air Cooled Boiler Centrifugal Fan

YG5 -47 Air - cooled High - temperature Resistant Small Boiler Fan meets advanced domestic standards. Developed by our company, leveraging global prototypes, it's made for the domestic boiler sector, featuring high efficiency, low noise, and minimal vibration.

The fan comes with an aluminum alloy die-cast Y2 high-temperature motor. A 9-cm cast iron insulating connector separates the motor from the thickened housing, with cooling blades inside.

This setup allows the fan to withstand 150-300℃ for stable motor operation. The laser-cut, thickened steel housing uses a straight-blade design, combining aesthetics with easy cleaning.

PREV：4-72 Type A/Type C/Type D High Efficiency Pneumatic Centrifugal FanNEXT：C6-48C Dust Removal Ventilation Exhaust Centrifugal Fan
  • Technical Parameters
  • Installation Diagram
  • Installation Dimension
  • Contact Us
  • Fan operating temperature: 150°C-180℃
    MODEL MOTOR POWER(W) SPEED(r/min) VOLTAGE(V) FLOW(m³/h) TOTA HEAD(Pa)
    YG5-47 120W-2 2800 220/380 500 450
    180W-2 2800 220/380 650 510
    250W-2 2800 220/380 860 580
    370W-2 2800 220/380 1100 650
    550W-2 2800 220/380 1450 680
    750W-2 2800 220/380 1810 700
    1.1KW-2 2800 220/380 2250 940
    1.5KW-2 2800 220/380 2800 1140
    2.2KW-2 2800 380 3100 1280
