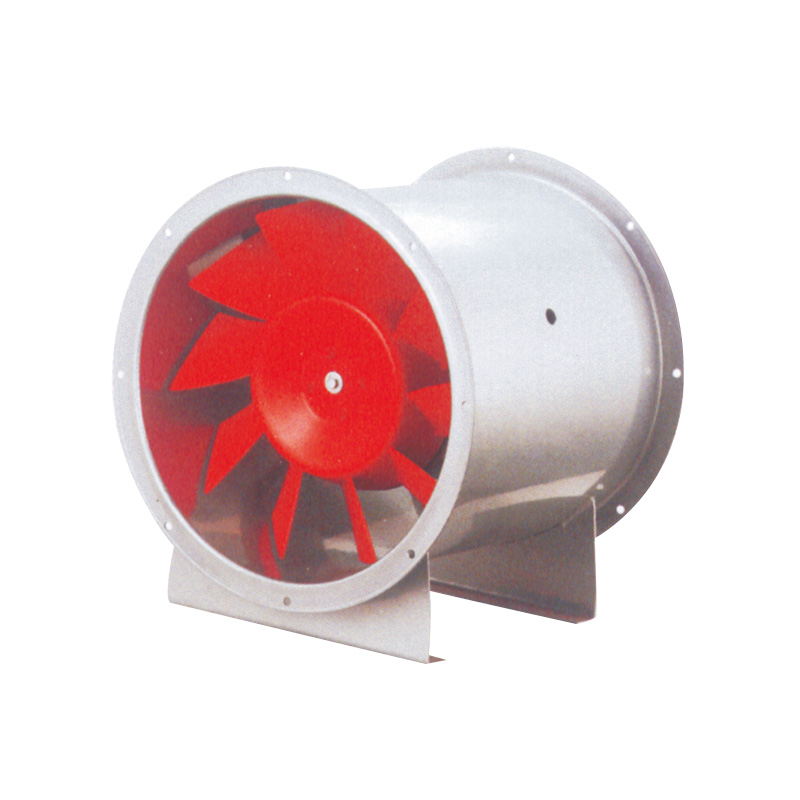

SWF-I/II/III High Efficiency Mixed Flow Fan for Industrial Plants

SWF-I, III, and III mixed flow fans are a new type of ventilation equipment that is between axial flow fans and centrifugal fans, and has the advantages of both. Its wind pressure is higher than that of axial flow fans of the same machine number, and its flow rate is larger than that of centrifugal fans of the same machine number. It has significant advantages such as wide high-efficiency zone and high efficiency.

This type of fan optimizes the impeller structure to make the airflow move in the axial and radial directions at the same time, which can not only meet the demand for large air volume, but also provide higher wind pressure. It is suitable for a variety of ventilation occasions such as industrial plants, tunnels, and basements. Flexible installation, smooth operation, and low noise make it an ideal choice for modern high-efficiency ventilation systems.

Contact Us

Technical Parameters

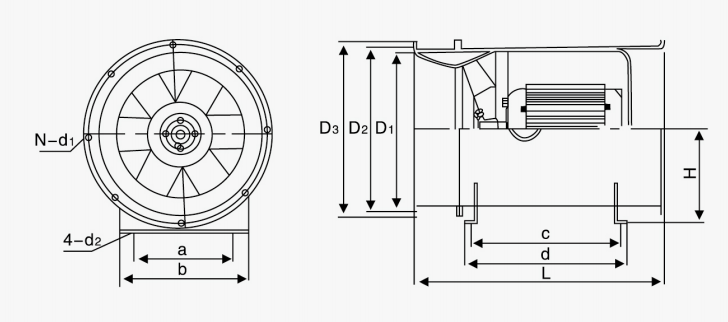

Installation Diagram
Installation Dimension
Contact Us

No.	POWER(Kw)	SPEED(r/min)	FLOW RATE(m³/h)	TOTAL PRESSURE	NOISE dB(A)
2.5	0.18	1450	1362-743	96-166	≤64
3	0.25	1450	2312-1606	121-236	≤66
4	0.37	1450	4512-2765	128-285	≤71
4.5	0.55	1450	4728-3160	182-306	≤73
5	1.1	1450	8652-4896	196-382	≤77
6	1.5	1450	11625-7560	165-382	≤79
7	3	1450	18800-11780	329-470	≤82
7	11	960	13820-8246	186-278	≤74
8	4	960	25467-16269	193-516	≤82
9	6.5	960	34206-22011	282-564	≤86
10	7.5	960	44054-29902	288-496	≤86
11	11	960	48729-35294	310-516	≤86
12	15	720	64292-47534	429-625	≤91
13	15	720	71565-51596	441-637	≤91

No.	POWER(Kw)	SPEED(r/min)	FLOW RATE(m³/h)	TOTAL PRESSURE(Pa)	NOISE dB(A)
5	5.5/4.5	2900	13110-9876	801-1316	≤83
5	5.5/4.5	1450	8652-4896	196-382	≤77
6	8/6.5	2900	19230-15210	836-1365	≤85
6	8/6.5	1450	11625-7560	165-382	≤70
7	2.8/2.2	1450	18800-11780	329-470	≤82
7	2.8/2.2	960	13820-8246	186-278	≤74
8	11/9	1450	37350-28564	809-1305	≤90
8	11/9	960	25467-16269	193-516	≤82
9	17/8	1450	46138-33579	785-1343	≤92
9	17/8	960	34206-22011	282-564	≤86
10	24/8	1450	51821-45028	792-1378	≤93
10	24/8	960	44054-29902	288-496	≤86
11	24/8	1450	59521-48177	806-1382	≤94
11	24/8	960	48729-35294	310-516	≤86
12	25/12	960	71092-55852	786-1308	≤95
12	25/12	720	64292-47534	429-625	≤91
13	30/18	960	87761-68652	805-1329	≤95
13	30/18	720	71565-51596	441-637	≤91
