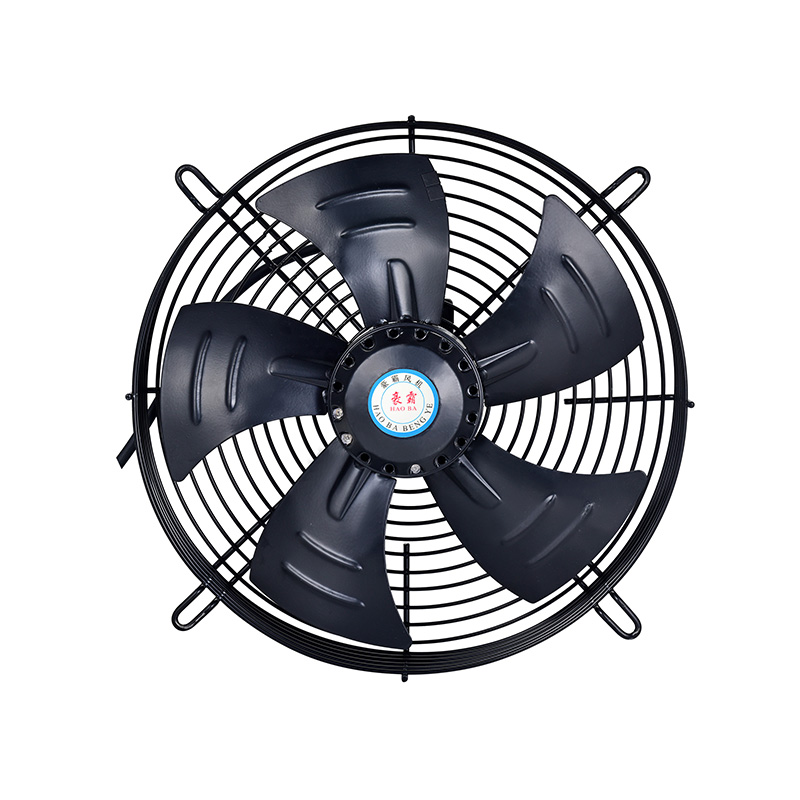

FZY Series Energy-Saving Low Noise External Rotor Motor Axial Flow Fan

The FZY series energy-saving and low-noise outer rotor motor axial flow fan is a professional fan product designed for efficient heat dissipation and silent operation. The fan is driven by an outer rotor single-phase capacitor-operated asynchronous motor or a three-phase asynchronous motor, and is equipped with a double-flange cylindrical casing, a stable protective grid and high-efficiency fan blades to form a whole with a compact structure and outstanding performance.

This series of fans has significant advantages such as large air volume, low vibration, low noise, low energy consumption, and reliable operation. It is particularly suitable for occasions with high requirements for ventilation volume and heat dissipation performance, such as ground automation control equipment, large electronic equipment, medical equipment, computers, automated office equipment, and heat dissipation systems of equipment such as welding machines.

The FZY series axial flow fan is also suitable for ventilation and air purification operations in industrial plants, office buildings, warehouses and other spaces. It is an ideal air treatment solution that combines energy saving and high efficiency. Whether it is industrial-grade heat source heat dissipation or building environment ventilation, the fan can provide stable and long-lasting operation guarantee.

  • MODEL LAMINA(V) VOLTAGE(V) FREQUENCY(Hz) ELECTRIC CURRENT(A) POWER(Kw) AIR VOLUME(m³/h) SPEED(r/min) CAPACITANCE(VF) NOISE dB(A)
    FZY-2E200 6 220 50 0.26 55 1050 2350 2 65
    FZY-2D200 6 380 50 0.13 50 1050 2400 / 65
    FZY-4E200 6 220 50 0.20 40 510 1450 2 53
    FZY-4D200 6 380 50 0.16 50 510 1450 / 53
    FZY-2E250 6 220 50 0.71 155 2100 2200 4 69
    FZY-2D250 6 380 50 0.27 110 2100 2100 / 69
    FZY-4E250 6 220 50 0.22 50 1300 1400 2 55
    FZY-4D250 6 380 50 0.16 50 1200 1400 / 55
    FZY-2E300 6 220 50 0.75 165 2700 2100 4 69
    FZY-2D300 6 380 50 0.35 135 2500 2150 / 69
    FZY-4E300 6 220 50 0.33 70 2200 1350 3 61
    FZY-4D300 6 380 50 0.23 80 2200 1400 / 61
    FZY-4E350 6 220 50 0.46 95 2850 1400 4 65
    FZY-4D350 6 380 50 0.29 100 2700 1400 / 65
    FZY-4E400 6 220 50 0.67 140 4150 1420 6 68
    FZY-4D400 6 380 50 0.36 115 4100 1400 / 68
    FZY-4E450 6 220 50 1.05 215 6150 1450 8 73
    FZY-4D450 6 380 50 0.60 205 5150 1450 / 73
    FZY-4E500 6 220 50 1.14 245 6500 1400 10 74
    FZY-4D500 6 380 50 0.61 215 6500 1350 / 74
    FZY-4E550 6 220 50 1.48 325 8200 1400 12 75
    FZY-4D550 6 380 50 0.62 230 8200 1350 / 75
    FZY-4E600 5 220 50 3.20 700 10600 1310 12 78
    FZY-4D600 5 380 50 1.65 820 12600 1350 / 78

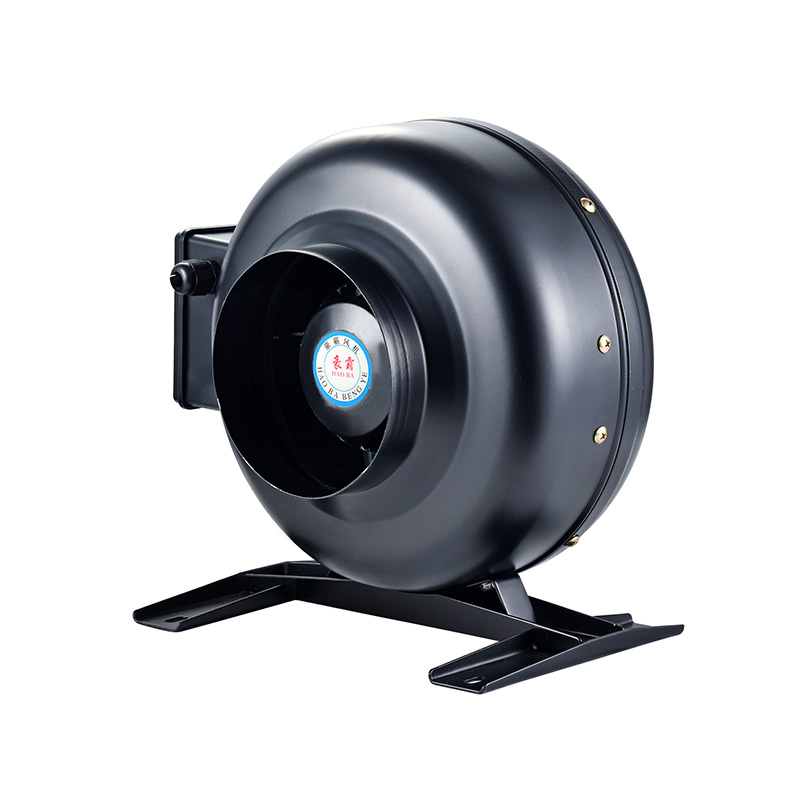

    MODEL SPEED(r/min) AIR VOLUME(m³/h) STATIC PRESSURE(Ps) POWER(Kw) POWER SOURCE(V) FREQUENCY(Hz) WEIGHT(Kg) NOISE dB(A)
    TSKNo100 2500 290 350 0.078 220 50 47 3
    TSKNo125 2500 405 390 0.08 220 50 47 3
    TSKNo150 2500 720 400 0.13 220 50 52 5
    TSKNo160 2500 755 420 0.13 220 50 52 5
    TSKNo200 2500 1000 550 0.17 220 50 53 5
    TSKNo250 2500 1105 670 0.18 220 50 55 6
    TSKNo315 2500 1875 830 0.35 220 50 56 8
