High Temperature Oil And Moisture Proof Axial Flow Fan

Home / Product / Axial Flow Fan / High Temperature Oil And Moisture Proof Axial Flow Fan

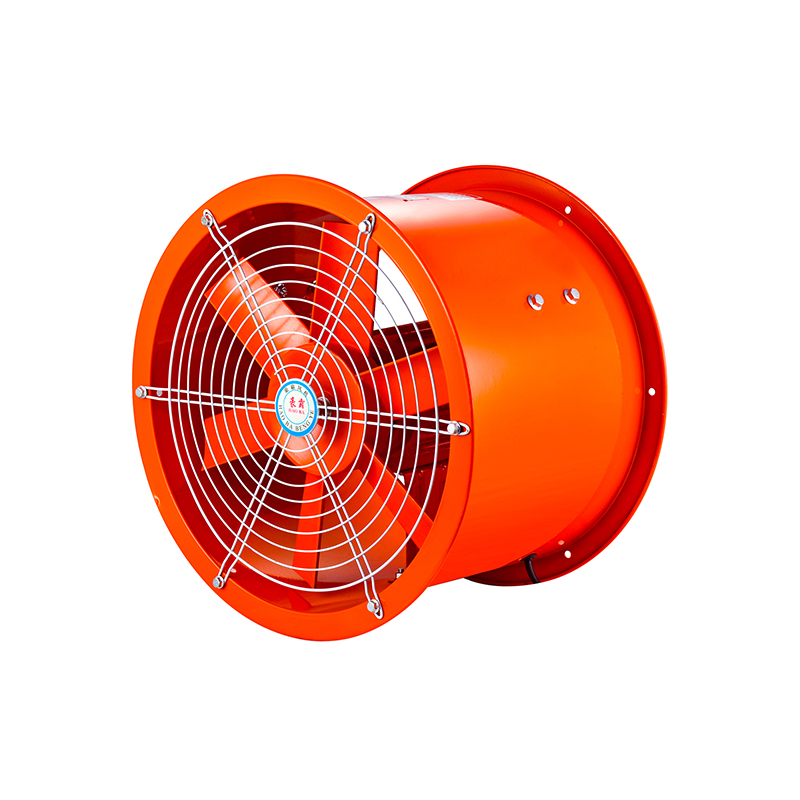

High Temperature Oil And Moisture Proof Axial Flow Fan

This series of high-temperature oil and moisture-proof ventilators is specially designed for the complex environment of hotels, bath centers, and factories.

The fan and motor shall be manufactured in strict accordance with the requirements of explosion-proof motor production, and the insulation grade shall reach grade F. Through the technical improvement of the shell, the sealing performance of the motor is improved.

Therefore, this product can be used in a relatively humid or hot environment(the temperature shall not exceed 80 degrees).

PREV：Portable High Speed Moving Axial Flow FanNEXT：T40/T35-11 High Efficiency Low Noise Axial Flow Fan
  • Technical Parameters
  • Installation Diagram
  • Installation Dimension
  • Contact Us
  • MODEL SPEED(r/min) POWER(Kw) AIR VOLUME(m³/h) TOTAL HEAD(V)
    2.5-4 1450 0.15 1000 35
    2.5-2 2800 0.25 2100 215
    3-4 1450 0.18 3000 59
    3-2 2800 0.37 4000 230
    3.5-4 1450 0.25 4000 100
    3.5-2 2800 0.75 6000 260
    4-4 1450 0.55 5870 149
    4-2 2800 1.1 11000 370
    5-4 1450 0.75 6800 200
    6-4 1450 2.2 17000 320
