NO. ROTATIONAL SPEED(r/min) MOTOR(Kw-p) FLOW(m³/h) TOTAL PRESSURE(Pa) 3.15C 1600 0.75-2 755-1688 483-354 1800 0.75-2 850-1899 611-448 2000 0.75-2 944-2110 755-553 2240 1.1-2 1057-2363 948-694 2500 1.1-2 1180-1909 1181-1070 2500 1.5-2 2152-2637 1015-865 2800 1.5-2 1322-2138 1483-1344 2800 2.2-2 2410-2954 1274-1086 3150 2.2-2 1487-2711 1880-1615 3150 3-2 3017-3323 1507-1376 4C 1250 0.75-2 1184-2748 481-345 1400 0.75-2 1326-3077 603-433 1600 1.1-2 1516-2850 789-672 1600 1.5-2 3183-3517 624-565 1800 1.5-2 1705-3957 999-716 2000 2.2-2 1895-4396 1234-884 2240 2.2-2 2122-2589 1550-1505 2240 3-2 3056-4924 1451-1100 2500 3-2 2369-3411 1933-1810 2500 4-2 3932-5495 1737-1384 5C 1000 0.75-2 1776-3035 486-436 1000 1.1-2 3479-4312 410-344 1120 1.1-2 1990-3896 620-514 1120 1.5-2 4415-4829 475-432 1250 1.5-2 2221-4349 760-641 1250 2.2-2 4927-5390 592-538 1400 2.2-2 2487-6036 954-675 1600 3-2 2842-6899 1247-882 1800 4-2 3198-6262 1580-1332 1800 5.5-2 7095-7761 1230-1118 2000 5.5-2 3553-6958 1953-1647 2000 7.5-2 7883-8623 1521-1381 NO. ROTATIONAL SPEED(r/min) MOTOR(Kw-p) FLOW(m³/h)
TOTAL PESSURE(Pa)6.3C 800 1.1-4 2343-4116 494-464 800 1.5-4 4857-6900 443-350 900 1.5-4 3198-4631 625-588 900 1.5-4 5464-7762 561-443 1000 2.2-4 3554-6071 772-693 1000 2.2-4 6959-8625 651-547 1120 3-4 3980-7794 969-818 1120 3-4 8831-9660 755-686 1250 4-4 4442-7588 1208-1085 1250 5.5-4 8699-10781 1019-855 8C 630 2.2-4 4584-11126 494-350 710 3-4 5166-12539 627-444 710 3-4 5821-8429 797-749 800 4-4 9944-14128 716-564 900 5.5-4 6549-12824 1009-851 900 7.5-4 14530-15894 786-714 1000 7.5-4 7276-17660 1247-882 1120 7.5-4 8150-9763 1566-1526 1120 11-4 11799-19779 1472-1108 1250 15-4 9096-22075 1953-1381 10C 500 4.4-4 7402-18208 508-344 600 5.5-4 9372-18373
807-659710 7.5-4 10510-20706 1026-838 710 11-4 23334-25856 769-695 800 11-4 11843-23331 1034-1065 800 15-4 26291-29134 978-882 900 15-4 13323-23049 1653-1445 900 18.5-4 26247-32776 1349-1118 1000 18.5-4 14804-22057 2043-1900 1000 22-4 25610-36417 1787-1381 12.5C 400 4-4 11565-20008 508-445 400 5.5-4 22784-28451 415-344 500 7.5-4 14457-25010 795-695 500 11-4 28480-35564 649-538 630 15-4 18215-31513 1264-1105 630 18.5-4 35885-44811 1031-855 710 22-4 20528-35515 1607-1405 710 30-4 40442-50501 1311-1087 800 30-4 23131-34465 2043-1900 800 37-4 40017-56902 1787-1381 -
-

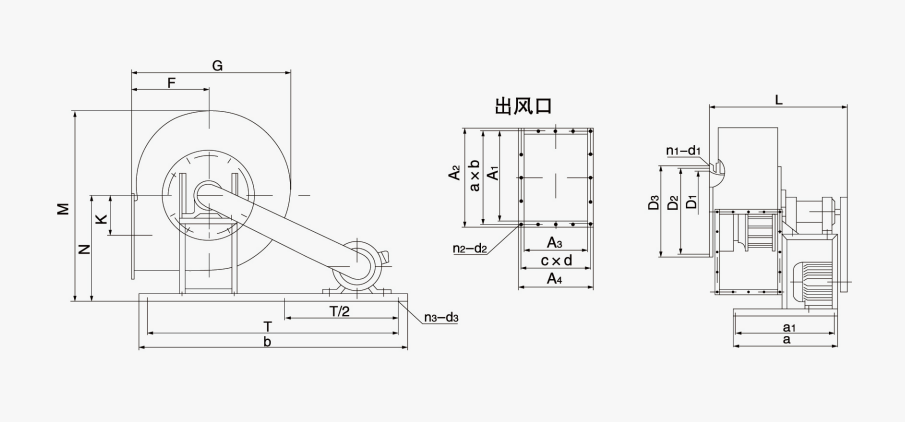

No. AIR INLET SIZE AIR OUTLET SIZE EXTERNA FORM AND MOUNTED DIMENSION Φ1 Φ2 Φ3 n1-d1 A A2 A3 A4 axb cxb n2-d2 G M L N F K E a a1 b T n3-d4 3.15 Φ250 Φ280 Φ310 8-Φ10 202 257 157 212 4×59 3×63 14-Φ7 463 587 600 360 196 215 108 554 517 860 660 4-Φ15 4 Φ320 Φ355 Φ385 8-Φ12 256 312 199 255 4×73 3×77 14-Φ7 586 747 728 460 247 272 132 634 597 950 750 4-Φ15 5 Φ400 Φ450 Φ490 2-Φ12 324 382 252 308 5×72 4×71 18-Φ7 741 924 781 560 31 344 159 634 597 1050 850 4-Φ15 6.3 Φ500 Φ560 Φ610 2-Φ12 410 468 315 371 5×891 4×87 18-Φ7 922 1213 1013 760 387 426 187 730 690 1300 100 4-Φ15 8 Φ630 Φ690 Φ740 2-Φ12 520 636 400 509 5×116 4×115 18-Φ15 178 1574 1404 900 495 540 236 980 940 1456 1256 6-Φ18 10 Φ800 Φ860 Φ910 16-Φ12 655 771 504 613 7×104 5×114 24-Φ15 483 1944 1508 1120 623 680 296 1180 1140 1588 1388 6-Φ18 12.5 Φ125 Φ1070 Φ1130 6-Φ15 815 935 627 737 8×111 8×11 28-Φ15 844 1372 1848 1370 774 846 373 1380 1332 1824 1624 6-Φ18 -
