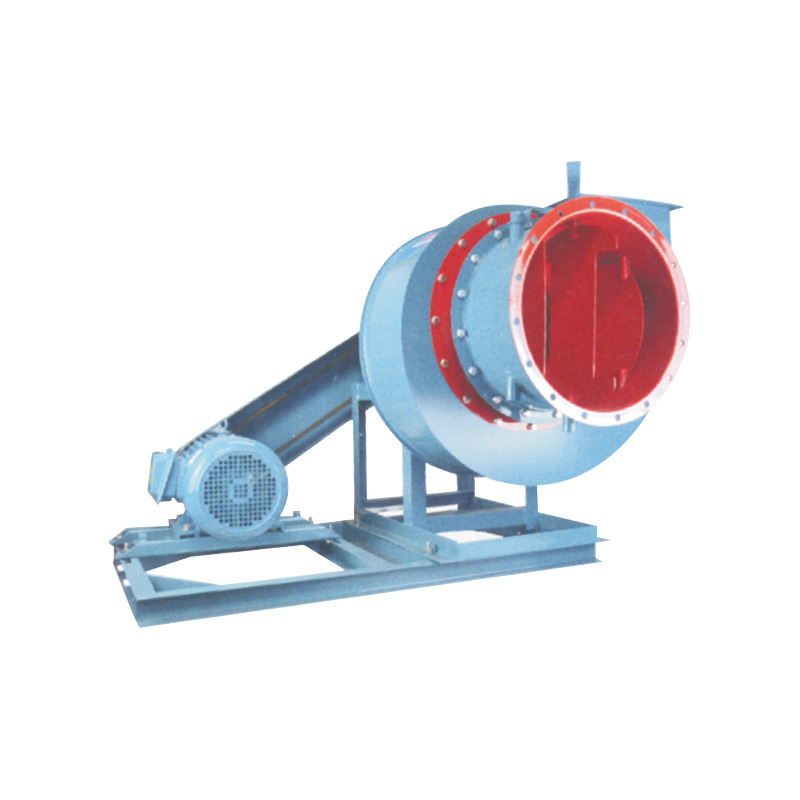

Y5-47 High Efficiency Low Noise Boiler Centrifugal Induced Draft Fan

This series of centrifugal induced draft fan of Y5-47 boiler has the characteristics of low noise, simple structure, flexible adjustment of air volume and wind direction, suitable for buring various coal and equipped with smoke and dust removal device industrial boiler, conveying gas temperature ≤250C, the fan transmission mode has two kinds of C and D, with water-cooled integral bearing seat and air volume adjustment door, such as the selection of shock absorber, Users can directly place the fan on the cement floor without anchor bolts, which is easy to install and debug.

PREV：FY11-48 Type A/Type E High Efficiency Kitchen Special Centrifugal FanNEXT：ZDG Series Fire Ventilation Dual Purpose Low Noise Cabinet Centrifugal Fan
  • Technical Parameters

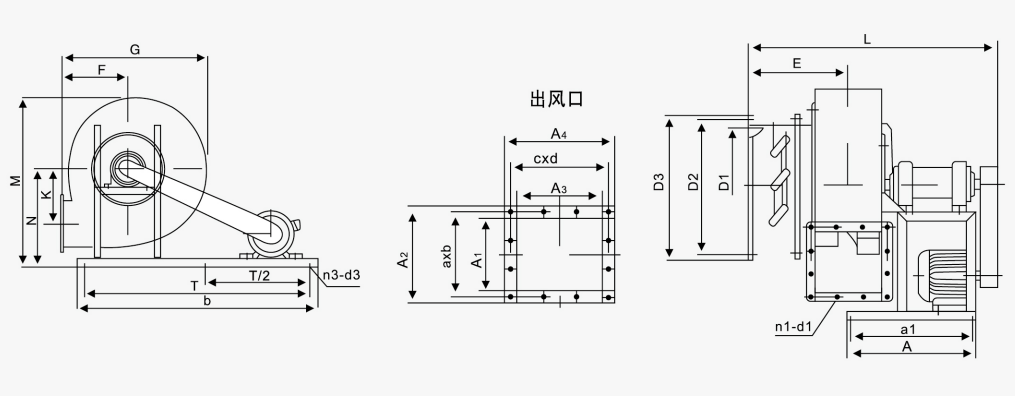

  • Installation Diagram
  • Installation Dimension
  • Contact Us
  • No. SPEED(r/min) MOTOR(Kw-p) FLOW(m³/h) TOTAL PRESSURE(Pa)
    TYPE POWER(Kw)
    3.15C 3250 Y90S-2 1.5 1323-2496 1049-716
    2990 Y90S-2 1.5 1218-2297 883-608
    2750 Y90S-2 1.5 1120-2112 745-520
    4C 2900 Y100L-2 3 2750-5060 1480-1078
    3390 Y112-2 4 3130-5760 1910-1310
    5C 2620 Y132S1-2 5.5 4840-9900 1882-1257
    2900 Y132S2-2 7.5 5360-9870 2314-1586
    6C 2620 Y160M2-2 15 8370-15410 3212-2194
    2850 Y160L-2 18.5 9010-16760 3364-2452
    7C 2580 Y200L1-2 30-2 11529-21747 3756-2746
    2320 Y180M-2 22-2 10367-19556 3040-2206
    2050 Y160L-4 15-4 9159-17280 2373-1716
    8C 2020 Y200L-4 30-4 13474-25417 3001-2187
    1860 Y180L-4 22-4 12407-23404 2550-1853
    9C 1900 Y225M-4 45-4 18045-34039 3364-2452
    1800 Y225S-4 37-4 17095-32247 3020-2197
