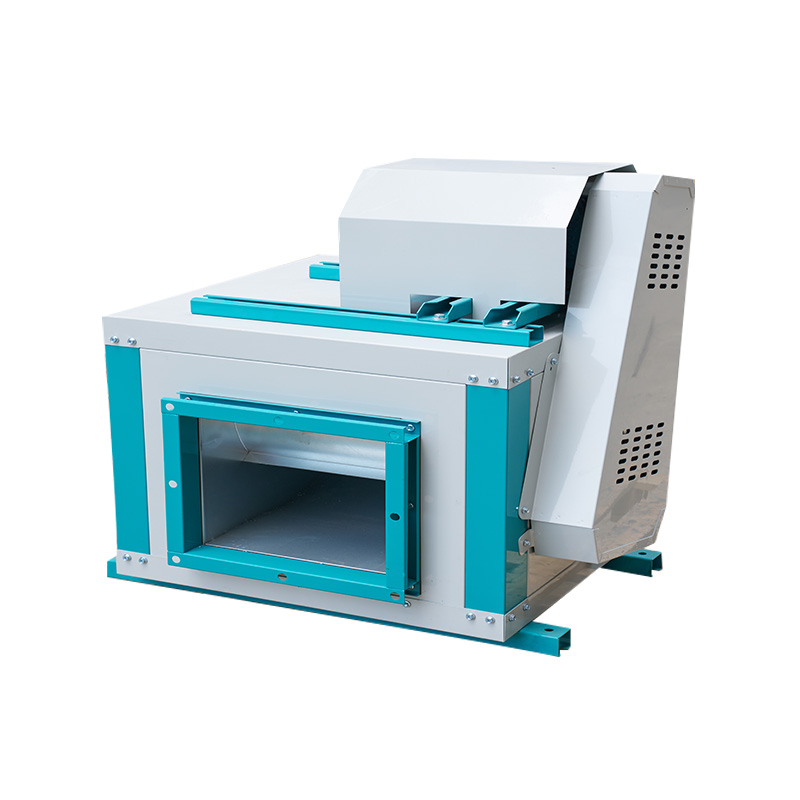

ZDG Series Fire Ventilation Dual Purpose Low Noise Cabinet Centrifugal Fan

ZDG series low noise cabinet centrifugal fan is a new type of fan developed by our company on the basis of introducing, digesting and absorbing domestic and foreign technology. The fan has dual functions of fire smoke exhaust and ventilation, with high efficiency, low noise, large flow, high temperature resistance, convenient installation, stable operation, and is a replacement product of a high-rise building fire smoke exhaust fan.

The fan is compact in structure and beautiful in appearance. The box body is designed by assembling the profile frame and the box board. The box board is made of high-quality cold-rolled steel plate bent, which is a double compound structure and filled with fireproof insulation material, which can not only prevent condensation in high-temperature environments, but also effectively reduce noise and vibration.

Contact Us

Technical Parameters
Installation Diagram
Installation Dimension
Contact Us

NO.	SPINDLE SPEED(r/min)	MOTOR(Kw-p)	FLOW(m³/h)	TOTAL PRESSURE(Pa)	NOISE dB(A)
9	1000	0.55-4	3495-1838	155-207	≤57
	1200	0.75-4	4194-2205	223-299	≤58
	1400	1.1-4	4893-2756	303-406	≤60
	1500	1.5-4	5243-2756	348-466	≤62
10	900	0.75-4	3675-1838	166-216	≤56
	1100	1.1-4	4492-2246	248-323	≤57
	1300	1.5-4	5308-2654	347-451	≤59
	1500	2.2-4	6125-3063	462-601	≤63
12	800	1.1-4	5345-2958	99-246	≤59
	900	1.5-4	6014-3328	252-311	≤60
	1000	2.2-4	6682-3697	311-384	≤60
	1200	3.0-4	8018-4437	448-553	≤64
15	600	1.5-4	7085-3575	165-207	≤62
	700	2.2-4	8266-4171	225-282	≤62
	850	3.0-4	10038-5065	331-415	≤63
	900	4.0-4	10628-5363	371-466	≤65
18	600	2.2-4	10813-7228	255-277	≤60
	700	3.0-4	12615-6746	307-377	≤61
	750	4.0-4	13516-7228	352-432	≤62
	850	5.5-4	15318-8139	425-555	≤65

NO.	SPINDLE SPEED(r/min)	MOTOR(Kw-p)	FLOW(m³/h)	TOTALPRESSURE	NOISEdB(A)
20	550	3.0-4	13837-7580	233-317	≤63
	600	4.0-4	15097-8269	278-377	≤63
	700	5.5-4	17613-9647	378-514	≤66
	800	7.5-4	20129-11025	494-671	≤70
22	500	4.0-4	16442-9640	214-288	≤64
	550	5.5-4	18086-10064	259-348	≤66
	650	7.5-4	21375-12531	362-487	≤69
	750	11-4	24663-14459	481-648	≤72
25	450	5.5-4	22649-13230	201-272	≤70
	500	7.5-4	25165-14700	248-336	≤71
	600	11-4	30198-17640	357-483	≤73
	700	15-4	35230-20580	486-658	≤76
28	480	7.5-4	33495-21177	301-389	≤71
	540	11-4	37681-23824	380-492	≤72
	580	15-4	40473-25588	481-568	≤74
	620	18.5-4	43264-27353	502-649	≤75
30	500	11-4	45061-26766	389-504	≤73
	530	15-4	47765-28372	437-566	≤73
	560	18.5-4	50468-29978	488-632	≤75
	600	22-4	54073-32120	560-726	≤77
