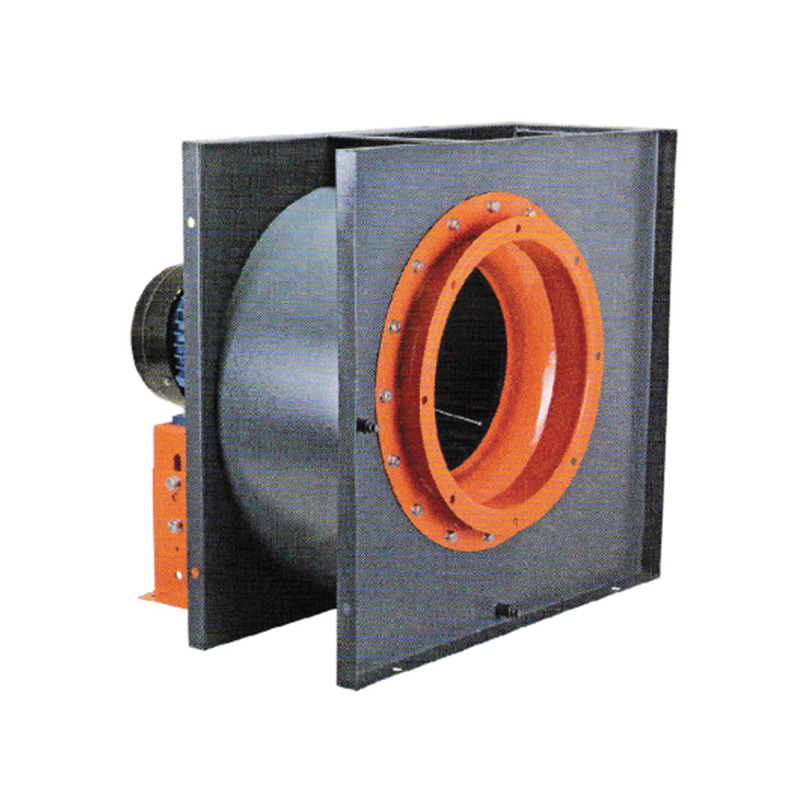

FY11-48 Type A/Type E High Efficiency Kitchen Special Centrifugal Fan

FY11-48 series of special centrifuges for oil fume purification is developed by the company on the basis of absorbing foreign technology and combining its own technical application.

In view of the problem of impeller oil cleaning in the kitchen smoke exhaust scene, relying on our many years of multi-wing fan impeller production experience and market research results, careful research and improvement, with superb technology and rich experience designed and manufactured.

The fan adopts a compact structure design, large suction, stable operation, with high efficiency and energy saving, low noise, convenient installation and maintenance advantages. Because of its reasonable design, outstanding performance in energy saving, production efficiency and product quality, it is welcomed by users.

This series of fans is widely used for conveying air, and the temperature is not higher than 80 °C, the dust and hard particulate matter content is not more than 150mg/m3, and non-corrosive, does not easily to spontaneous combustion, and does not contain viscous material media.

Contact Us

Technical Parameters

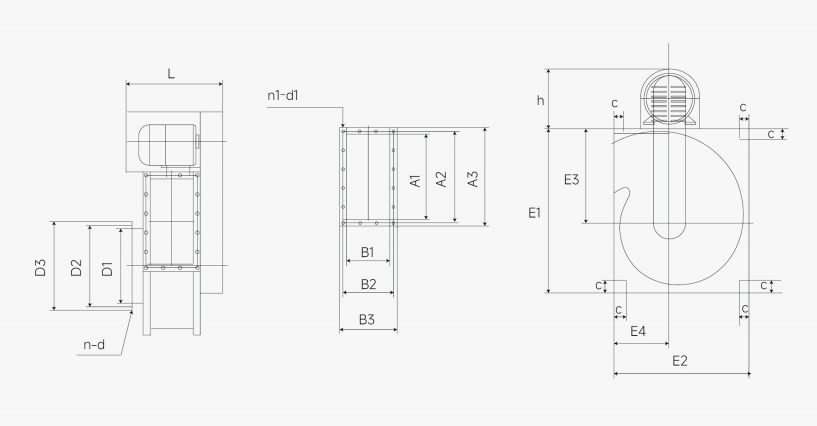

Installation Diagram
Installation Dimension
Contact Us

No.	ROTATIONAL SPEED(r/min)	VOLTAGE(V)	EQUIPPED WITH MOTOR POWER(Kw-p)	WITH THE MOTOR FRAME NUMBER(No.)	AIR VOLUME(m³/h)	FULL PRESSURE(Pa)
2.5A	1420	220/380	0.75	Y80M-4	1700-2500	370-446
2.8A	1450	220/380	1.5	Y90L-4	2200-3500	562-668
3.15A	910	380	0.75	Y90S-6	1506-224	254-338
3.15A	1450	220/380	2.2	Y100L-4	2400-4500	644-858
3.15A	1450	220/380	3	Y100L-4	3000-7200	600-1000
3.55A	960	380	1.1	Y90L-6	2118-5164	390-492
3.55A	1450	380	4	Y112M-4	3200-7800	890-123
3.55A	1450	220/380	3	Y100L-4	3000-7200	600-1000
4A	960	380	3	Y112M-6	3000-5800	609-664
4A	1450	380	5.5	Y132S-4	6000-8800	1307-1420
4.5A	960	380	4	Y132M-6	6000-21000	757-836
5A	960	380	5.5	Y132M-6	5000-13000	740-933
5.6A	720	380	4	Y160M-8	522-395	568-700
5.6A	960	380	7.5	Y160M-6	9000-17000	1031-1270
6.3A	720	380	11	Y180L-8	7327-13051	1376-1564
6.3A	970	380	15	Y180L-6	14819-25500	1475-1637

NO.	ROTATIONAL SPEED(r/min)	POWER(Kw-p)	AIR VOLUME(m³/h)	WIND PRESSURE(Pa)	STATIC PRESSURE(Pa)
4E	960	3	4500-7100	650-850	450-750
4E	1250	4	5172-7586	971-1059	768-960
4E	1450	5.5	6000-8800	1307-1425	1034-1293
4.5E	830	3	4000-9500	550-800	450-650
4.5E	970	4	4222-10486	757-875	515-760
4.5E	1100	5.5	4787-11891	974-1125	662-982
5E	820	4	4800-8500	630-850	400-610
5E	970	5.5	8000-13000	740-901	495-838
5E	1100	7.5	9268-14742	951-1199	636-1077
5.6E	970	7.5	4000-17000	1031-1270	911-1126
5.6E	1100	11	4536-19278	1325-1633	1171-1448
6.3E	800	11	7500-26250	1189-1409	823-1264
6.3E	970	15	8083-25500	1381-1637	1099-1468
6.3E	650	7.5	6800-18365	953-1200	635-1085
7E	700	15	8000-30000	817-993	463-881
7E	750	18.5	10714-32143	938-1140	532-1012

No.	AIR INLET SIZE							AIR OUTLET SIZE				E×TERNAL FORM AND MOUNTED DIMENSION
No.	A1	A2	A3	B1	B2	B3	n-d	D1	D2	D3	n1-d1	E1	E2	E3	E4	E5	E6	E7	E8	/	a×b	C	n2-d2
2.5#(0.75kw-4 Singl)	280	312	342	160	190	220	10-Φ7	Φ210	Φ240	Φ265	4-Φ7	515	470	295	220	230	903	36	115	461	20×10	50	4-Φ10
2.5#(0.75kw-4 Three phase)	280	312	342	160	190	220	10-Φ7	Φ210	Φ240	Φ265	4-Φ7	515	470	295	220	230	190	36	115	446	20×10	50	4-Φ10
2.8#(1.5kw-Singl)	315	348	377	180	210	240	10-Φ7	Φ235	Φ265	Φ290	8-Φ7	565	520	326.5	238.5	230	210	41	145	575	20×10	50	4-Φ10
2.8#(1.5kw-Three phase)	315	348	377	180	210	240	10-Φ7	Φ235	Φ265	290	8-Φ7	565	520	326.5	238.5	230	210	41	145	5102	20×10	50	4-Φ10
3.15#(0.75kw-6)	355	387	417	200	230	260	10-Φ7	Φ265	Φ300	Φ325	8-Φ7	635	580	365	270	250	230	41	160	500	20×10	50	4-Φ10
3.15#(2.2kw-Singl)	355	387	417	200	230	260	10-Φ7	Φ265	Φ300	Φ325	8-Φ7	635	580	365	270	250	230	41	160	615	20×10	50	4-Φ10
3.15#(2.2kw-Three phase)	355	387	417	200	230	260	10-Φ7	Φ265	Φ300	Φ325	8-Φ7	635	580	365	270	250	230	41	160	565	20×10	50	4-Φ10
3.55#(1.1kw-6)	400	432	462	225	255	285	12-Φ7	Φ300	Φ335	Φ360	8-Φ7	710	655	407	303	230	255	41	145	555	20×10	50	4-Φ10
3.55#(4kw-4)	400	432	462	225	255	285	12-Φ7	Φ300	Φ335	Φ360	8-Φ7	710	655	407	303	300	255	41	175	610	20×10	50	4-Φ10
4#(3kw-6)	450	492	532	250	290	330	12-Φ7	Φ335	Φ370	Φ400	8-Φ7	800	730	464	336	340	290	46	340	696	25×13	70	4-Φ12
4#(5.5kw-4)	450	492	532	250	290	330	12-Φ7	Φ335	Φ370	Φ400	8-Φ7	800	730	464	336	340	290	46	340	696	25×13	70	4-Φ13
4.5#(4kw-6)	500	540	582	280	320	260	14-Φ7	Φ380	Φ420	Φ450	8-Φ10	900	800	517	360	340	320	46	230	766	25×13	70	4-Φ13
5#(5.5kw-6)	560	600	642	315	355	395	6-Φ10	Φ410	Φ450	Φ480	8-Φ10	1000	890	570	390	340	355	46	230	806	25×13	70	4-Φ13
5.6#(4kw-8)	630	672	712	355	395	435	18-Φ10	Φ470	Φ520	Φ560	8-Φ12	1100	990	633	435	410	395	46	285	900	25×13	70	4-Φ13
5.6#(7.5kw-6)	630	672	712	355	395	435	18-Φ10	Φ470	Φ520	Φ560	8-Φ12	1100	990	633	435	410	395	46	285	900	25×13	70	4-Φ13
6.3#(75kw-8)	710	756	802	400	445	490	20-Φ10	Φ520	Φ570	Φ610	12-Φ12	1250	120	715	490	420	445	51	310	1013	51	65	4-Φ13
6.3#(11kw-8)	710	756	802	400	445	490	20-Φ10	Φ520	Φ570	Φ610	12-Φ12	1250	120	715	490	420	445	51	310	1013	51	65	4-Φ13
6.3#(15kw-6)	710	756	802	400	445	490	20-Φ10	Φ520	Φ570	Φ610	12-Φ12	1250	120	715	490	420	445	51	360	1066	51	65	4-Φ13

NO.	AIR INLET SIZE				AIR OUTLET SIZE							E×TERMA FORM AND MOUNTED DIMENSION
NO.	D1	D2	D3	n1-d1	A1	A2	A3	B1	B2	B3	n2-d2	E1	E2	E3	E4	E5	a×b	c	L	h
4E	335	370	400	8-Φ7	450	123×4	532	250	142×2	330	12-Φ7	800	730	464	336	290	13×25	70	510	405
4.5E	380	420	450	8-Φ10	500	135×4	582	280	107×3	360	14-Φ7	900	800	517	360	320	13×25	70	520	420
5E	410	450	480	8-Φ10	560	120×5	642	315	118×3	395	16-Φ10	1000	890	570	390	355	13×25	70	560	430
5.6E	470	520	560	8-Φ12	630	112×6	712	355	132×3	435	18-Φ10	1110	990	633	435	395	13×25	70	653	480
6.3E	520	570	610	12-Φ12	710	126×6	802	400	111×4	490	20-Φ10	1250	1120	715	490	445	13×25	65	710	490
7E	580	626	666	12-Φ12	765	135×6	850	450	125×4	540	20-Φ10	1373	1170	808	498	490	13×25	65	770	550
