11-62 Spiral Housing Low Noise Multi-Wing Centrifugal Fan

Home / Product / Multi-Wing Fan / 11-62 Spiral Housing Low Noise Multi-Wing Centrifugal Fan

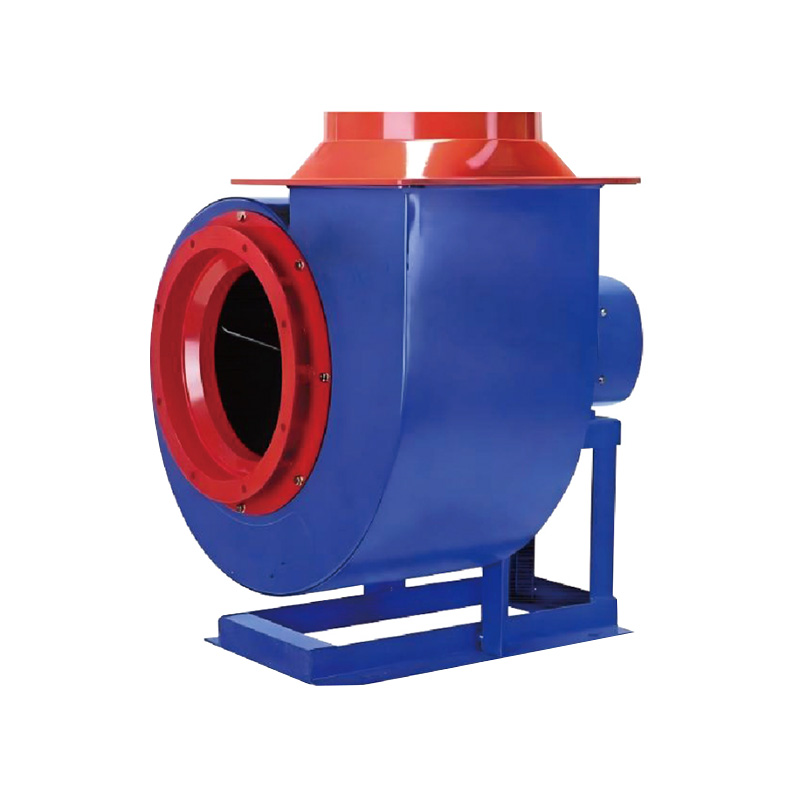

11-62 Spiral Housing Low Noise Multi-Wing Centrifugal Fan

This series 11-62A centrifugal fan is a kind of high-efficiency, low-speed, low-noise centrifugal fan. It is driven by an advanced air impeller structure, logarithmic spiral housing, and has a new and compact structure, small vibration, easy to adjust when using and other characteristics.

Suitable for air conditioning units, large and small hotels, restaurants, ventilation or smoke; It can also be used for indoor and outdoor ventilation in general buildings.

The transmission medium is air or other gases, not spontaneous combustion, harmless to the human body, a medium not containing viscous material, gas temperature does not exceed 80 °C , and the dust and solid matter is less than 150 mg/M3.

PREV：CF-11A Energy Saving Noise Reduction Multi-Wing Centrifugal FanNEXT：DF Series Low Noise Multi-Wing Centrifugal Blower
  • Technical Parameters

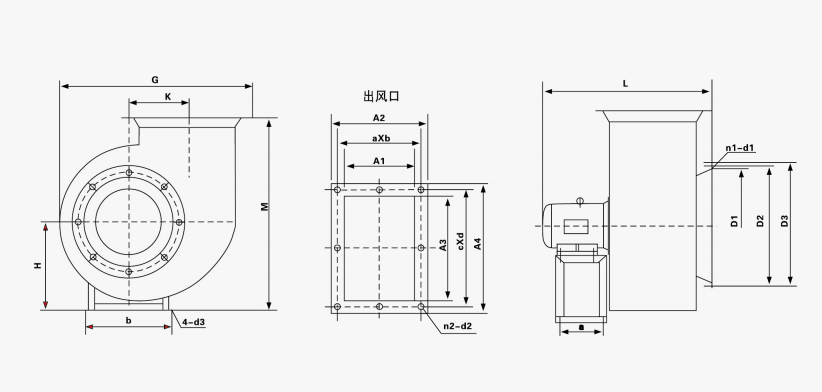

  • Installation Diagram
  • Installation Dimension
  • Contact Us
  • MODEL SPEED(r/min) MOTOR(Kw-p) FLOW(m³/h) TOTA HEAD(Pa)
    2.5A 1450 0.75-4 1330-3300 450-350
    2.8A 1450 1.1-4 2200-5600 570-440
    2.8A 950 0.55-6 1430-3600 240-230
    3.0A 1450 1.5-4 2100-4600 580-400
    3.5A 950 1.1-6 1800-4500 400-350
    3.5A 1450 3-4 2800-6800 900-680
    4.0A 960 2.2-6 3300-7700 520-420
    4.0A 1450 7.5-4 5000-12000 1200-950
    4.5A 960 3-6 4000-9500 710-610
    5A 960 4-6 4700-10700 770-720
    5A 960 5.5-6 7000-11500 910-850
    6A 960 7.5-6 10000-19000 1100-1010
    6A 960 11-6 16000-22500 1300-1250
