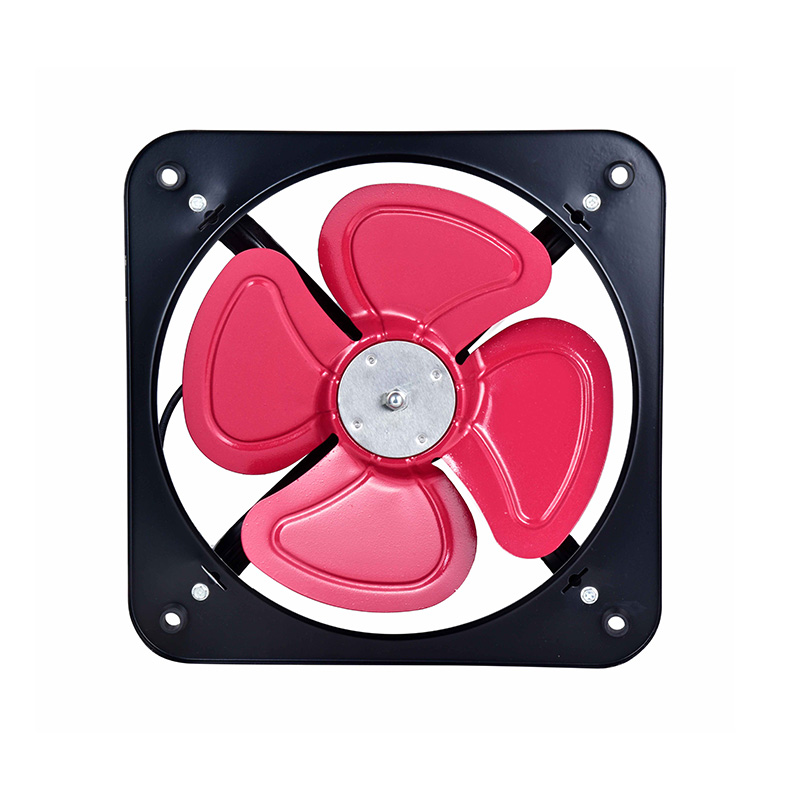

FA/FTA Motor Drive Multi-Wing Axial Flow Exhaust Fan

This series of fans for axial flow exhaust fan, divided into FA, FTA two types, FA single capacity to driven electric axial flow exhaust fan; FTA is an axial flow exhaust fan driven by a three-phase induction motor.

Which is suitable for regulating air, ventilation, cooling, and forced air cooling of large instruments and equipment and high-power semiconductor silicon components in factories, warehouses, office buildings, basements, theaters, etc.

The structure of the exhaust fan is that the fixed-angle propeller-type wind blade is directly assembled on the shaft extension of the three-phase or single-phase asynchronous closed-cage motor, and the motor is installed in the frame, which has a simple structure and convenient use.

PREV：No next articleNEXT：CF-11A Energy Saving Noise Reduction Multi-Wing Centrifugal Fan
  • Technical Parameters
  • Installation Diagram
  • Installation Dimension
  • Contact Us
  • MODEL SPEED(r/min) POWER(W) EXHAUSTAIR(m³/h) VOLTAGE(V) BLADE SIZE(mm)
    FA-25 1380 45 18 220 250
    FA-30 1380 80 28 220 300
    FA-35 1380 105 32 220 350
    FA-40/FTA-40 1380 150/130 48 220/380 400
    FA-50/FTA-50 1380 350/290 98 220/380 500
    FTA60 1380 580 170 380 600
    FTA-75 1380 850 265 380 750
